E3D – sliding plug door

THE E3D IS BASED ON THE E3H and has been developed as a pressure-sealed variant for big entrance widths of up to 1600 mm.

The four over dead centre locks guarantee the pressure-sealing for pressures of up to 8.000 Pa at 1600 mm width, even in case of being taken out of service.

  • Largest door leaf size in the industry
  • Passive sealing system – still operable with small rubber damage (active sealing by competition requires immediate repair)
  • Built within portal pillars
  • Over dead center locking – still closed/locked and pressure tight without any power supply
  • Full electric system – no pneumatic needed

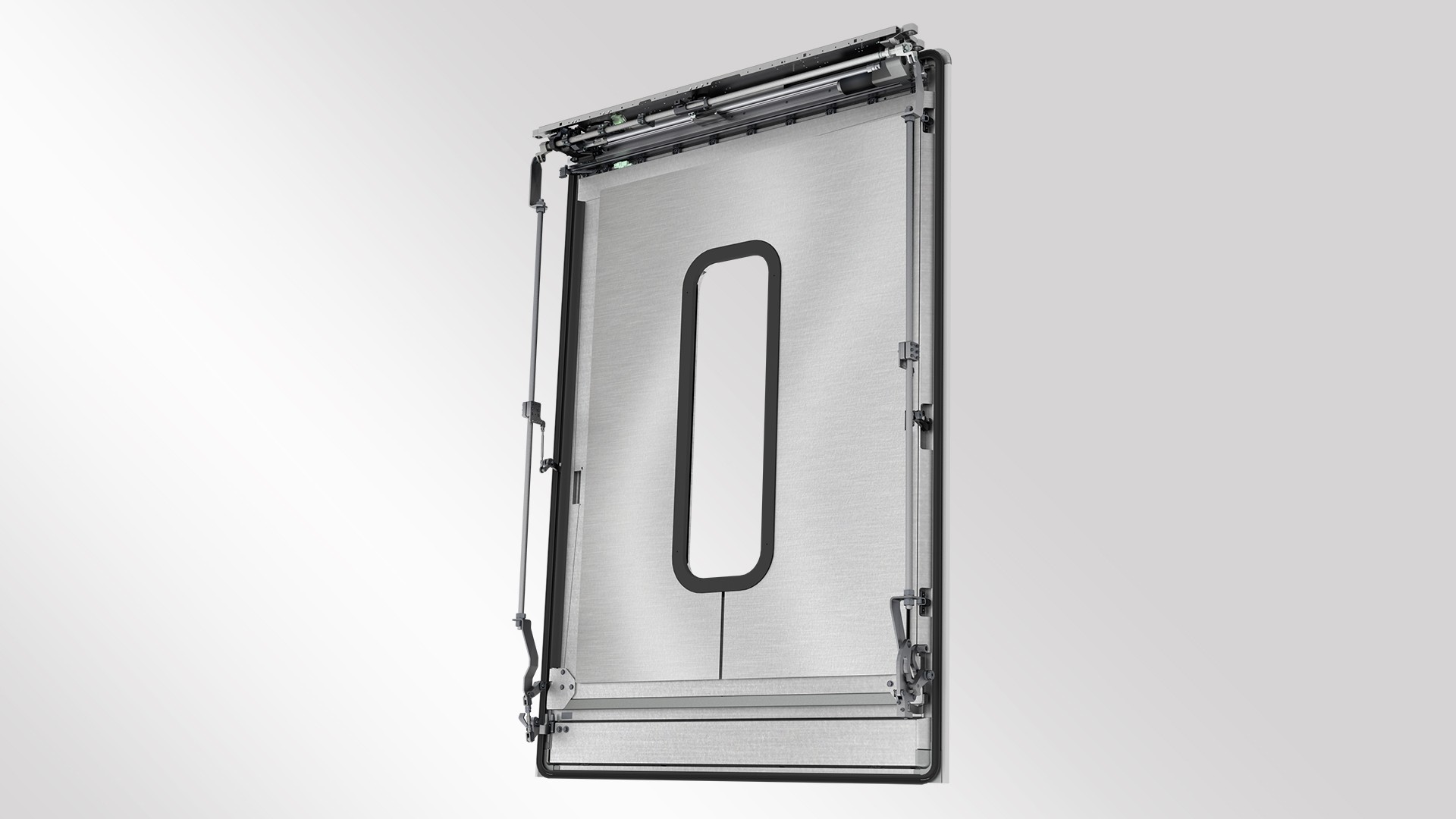

Door Drive E3D
E3D

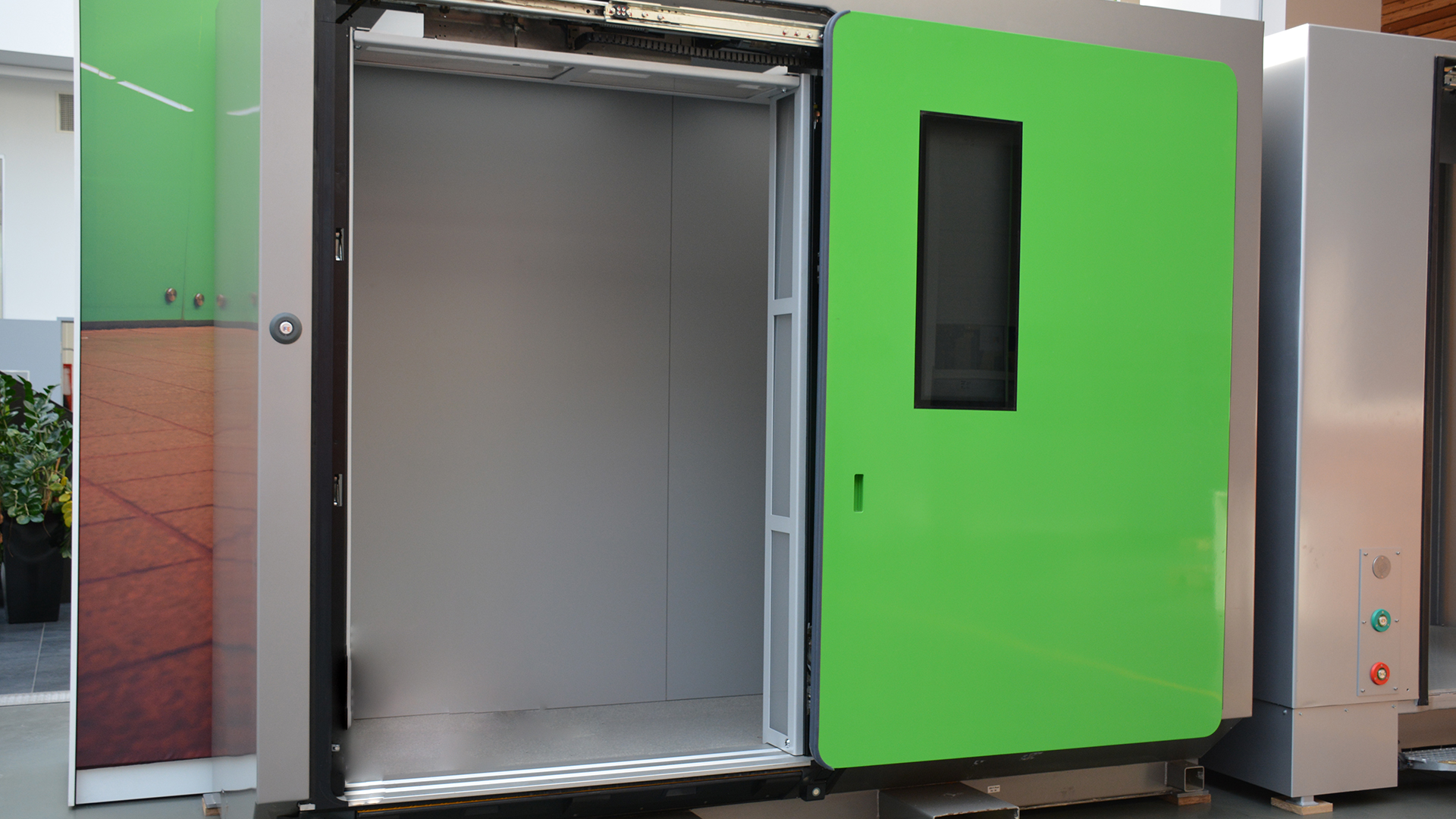

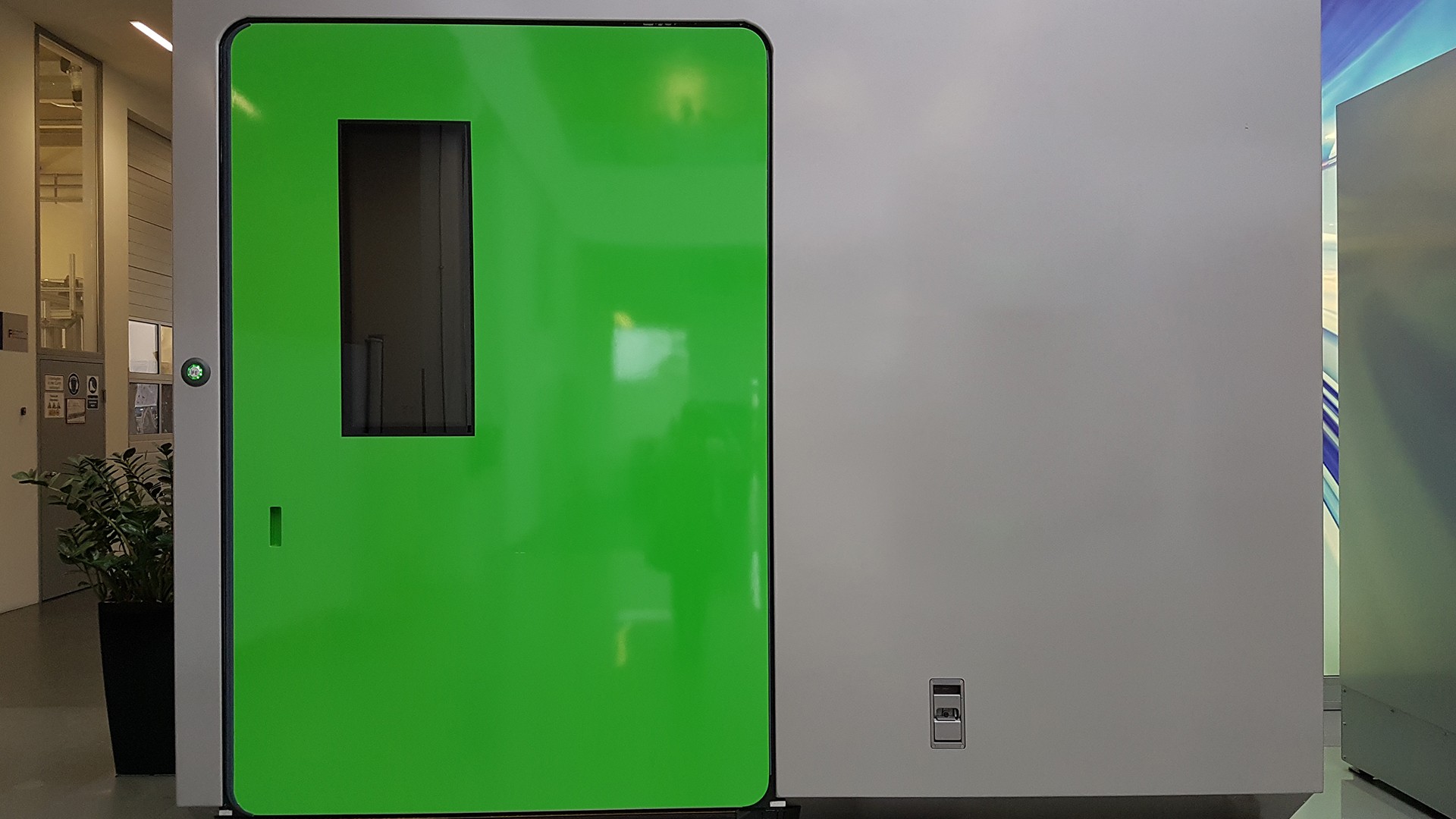

E3D sample booth in the IFE showroom
E3D
E3D
E3D sample booth in the IFE showroom
E3D
E3D
E3D
E3D sample booth in the IFE showroom
E3D sample booth in the IFE showroom
