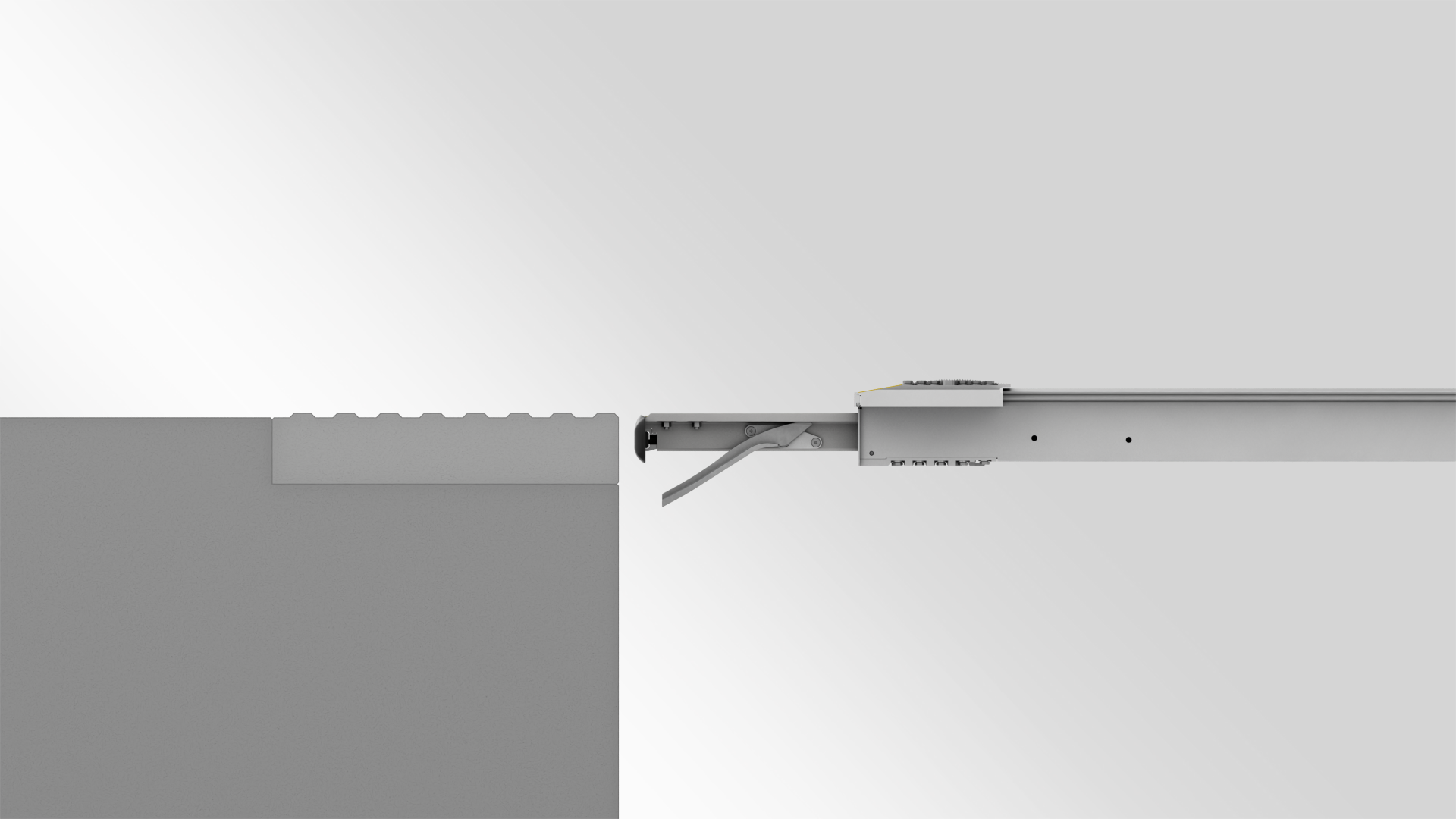

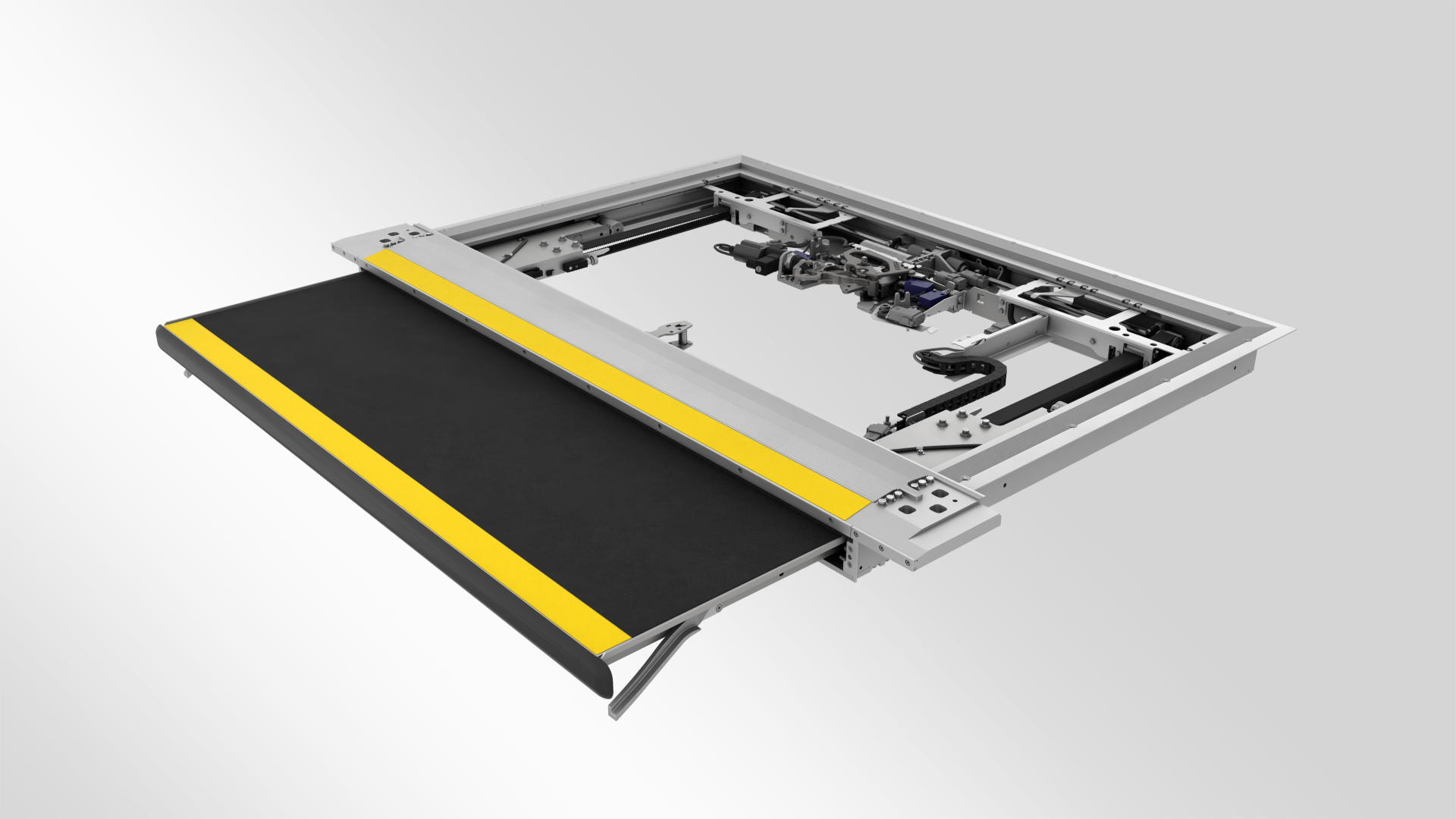

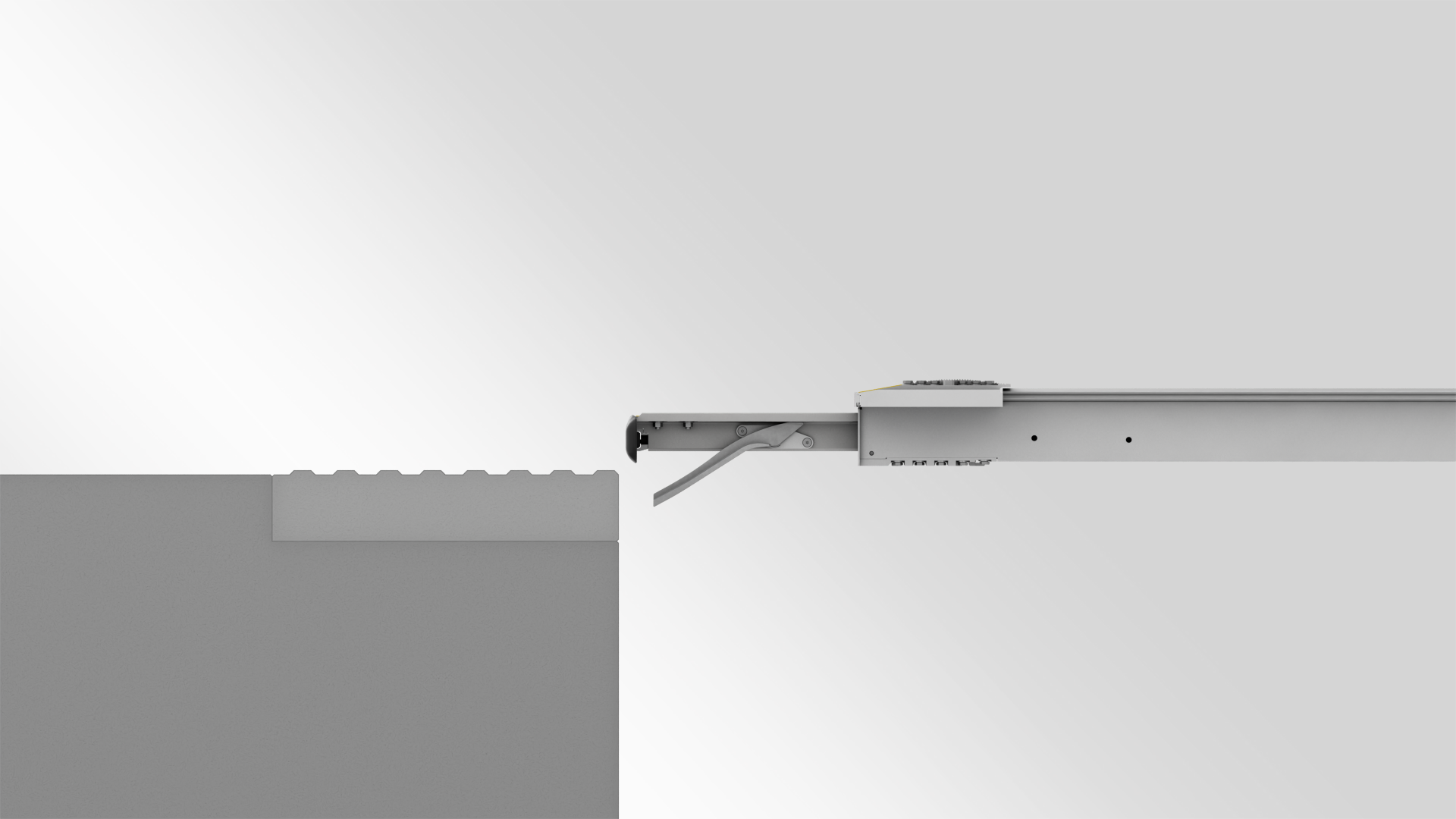

STR Sliding Step

The STR Sliding Step is an innovative access system for rail vehicles that offers high flexibility and reliability. It features a clear width ranging from 900 to 1,800 mm and an extension range from 0 to 600 mm (standard: 360 mm). The design is particularly lightweight – for an application with a 1,300 mm cassette and a 360 mm extension range, the weight is only 65 kg. The installation height at the floor is reduced to 56 mm, and the opening and closing time is approximately 3.0 seconds (with a 300 mm extension path).

Simple vehicle integration

• Installation friendly –no adjustment necessary / possible
• Easy and quick installation

Benefits

• Reduced space envelope
• Optimized corrosion resistance
• Weight detection via sensor located inside the step → reduced failure rate compared to electrical sensor mat
• No welding points on frame
• Mutiple installation positions possiblefloor integrated, step cassette or underneath the carbody
• Highest availability
• Highest reliabilityinstalled base > 100.000 access systems

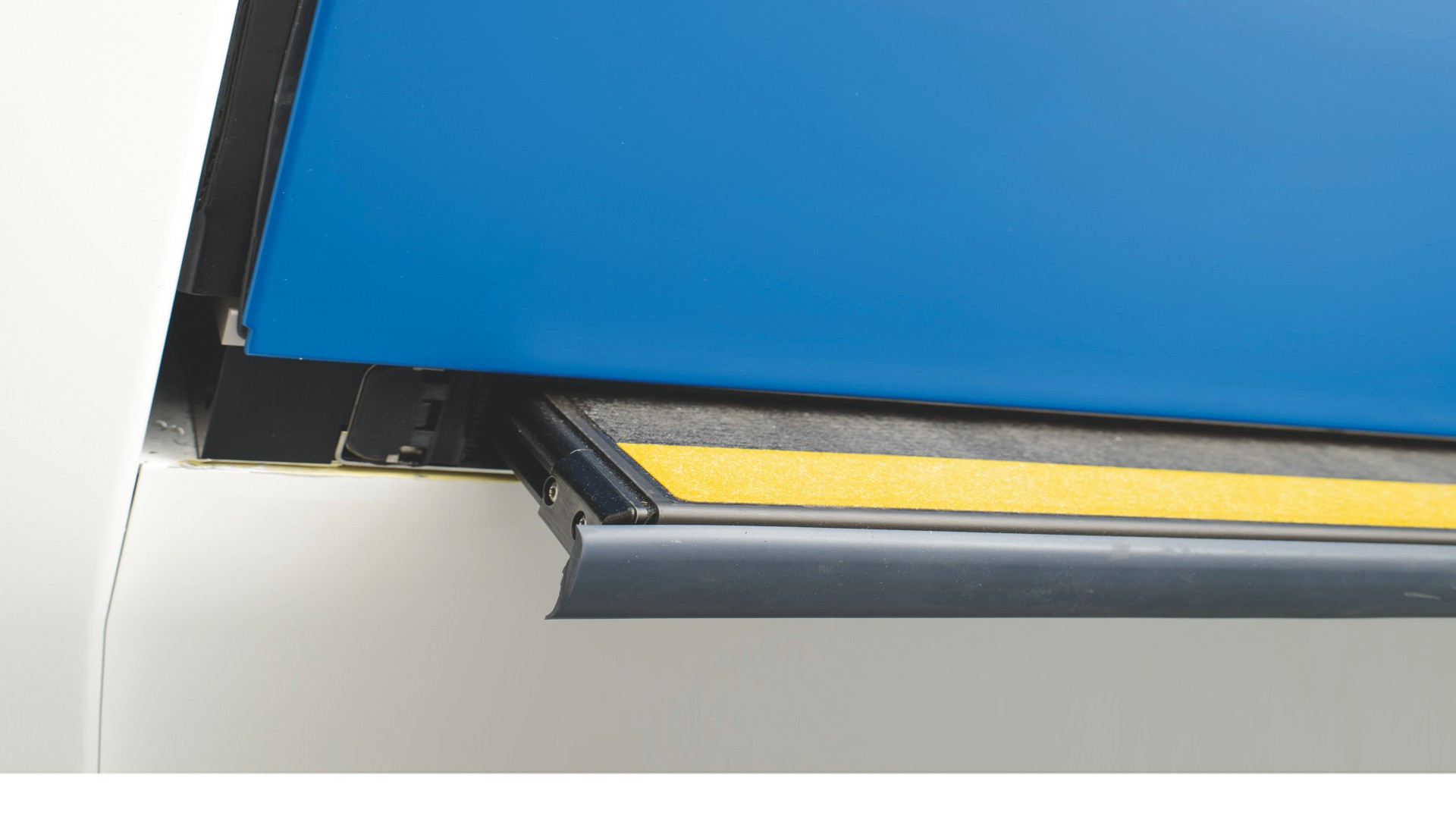

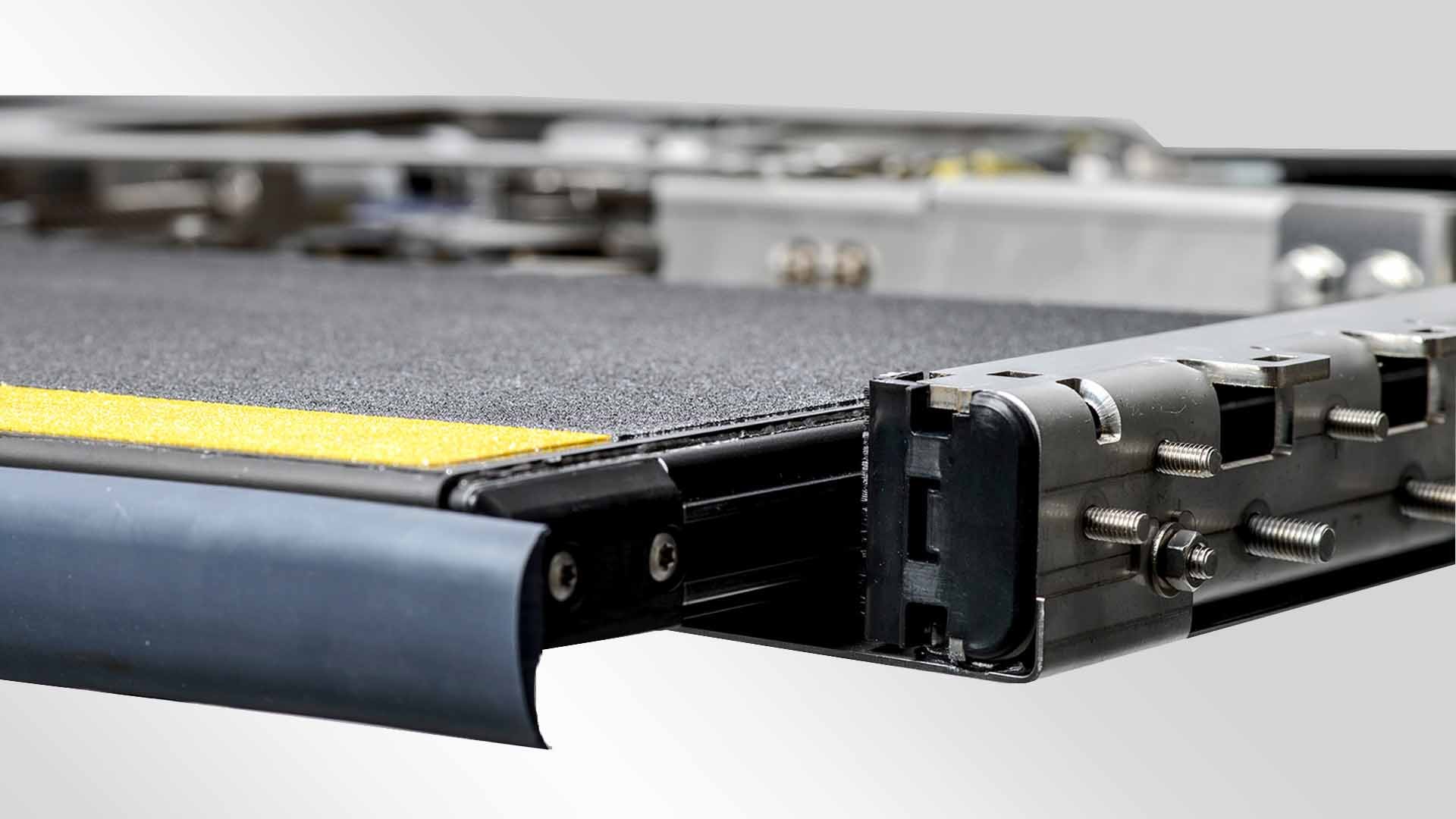

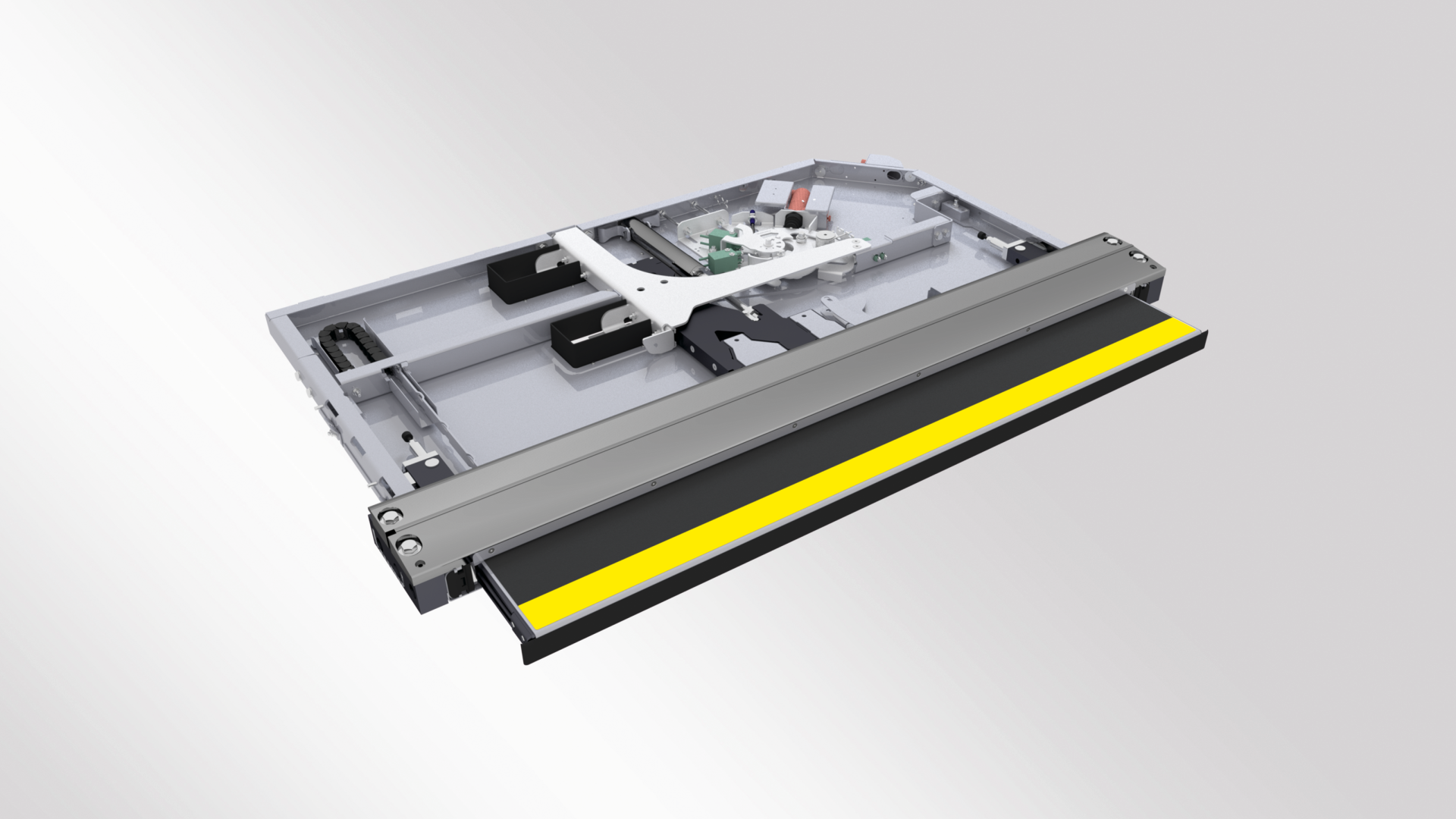

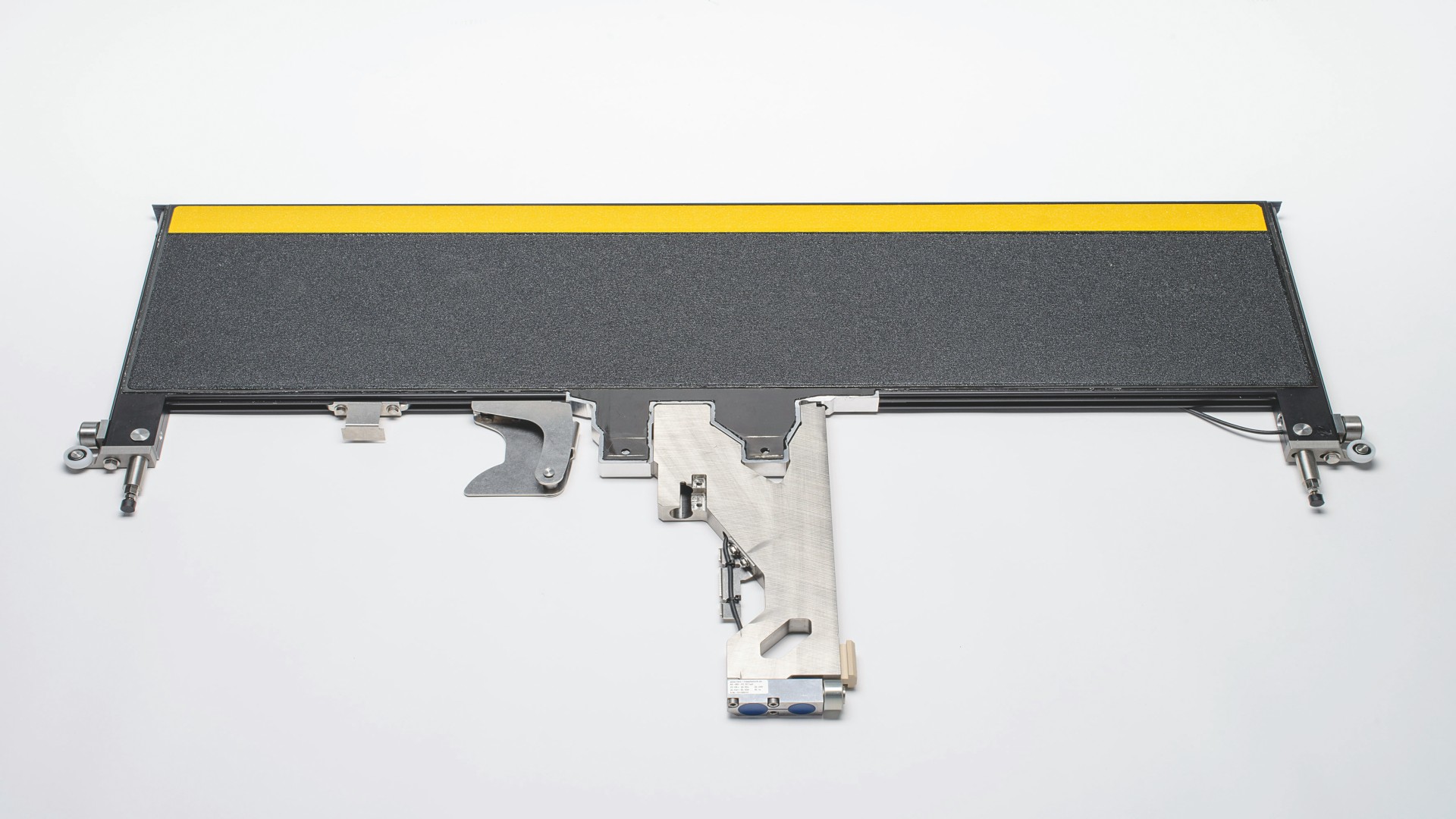

X4 sliding step

The easy and fast to install IFE X4 sliding step is supplied as a slim and fully fitted cassette that needs a very limited installation space thanks to its extremely compact design.

The X4 sliding step excels with an installation height of only 50 mm for standard widths of up to 1400 mm. The degree of extension can be adapted to the requirements.

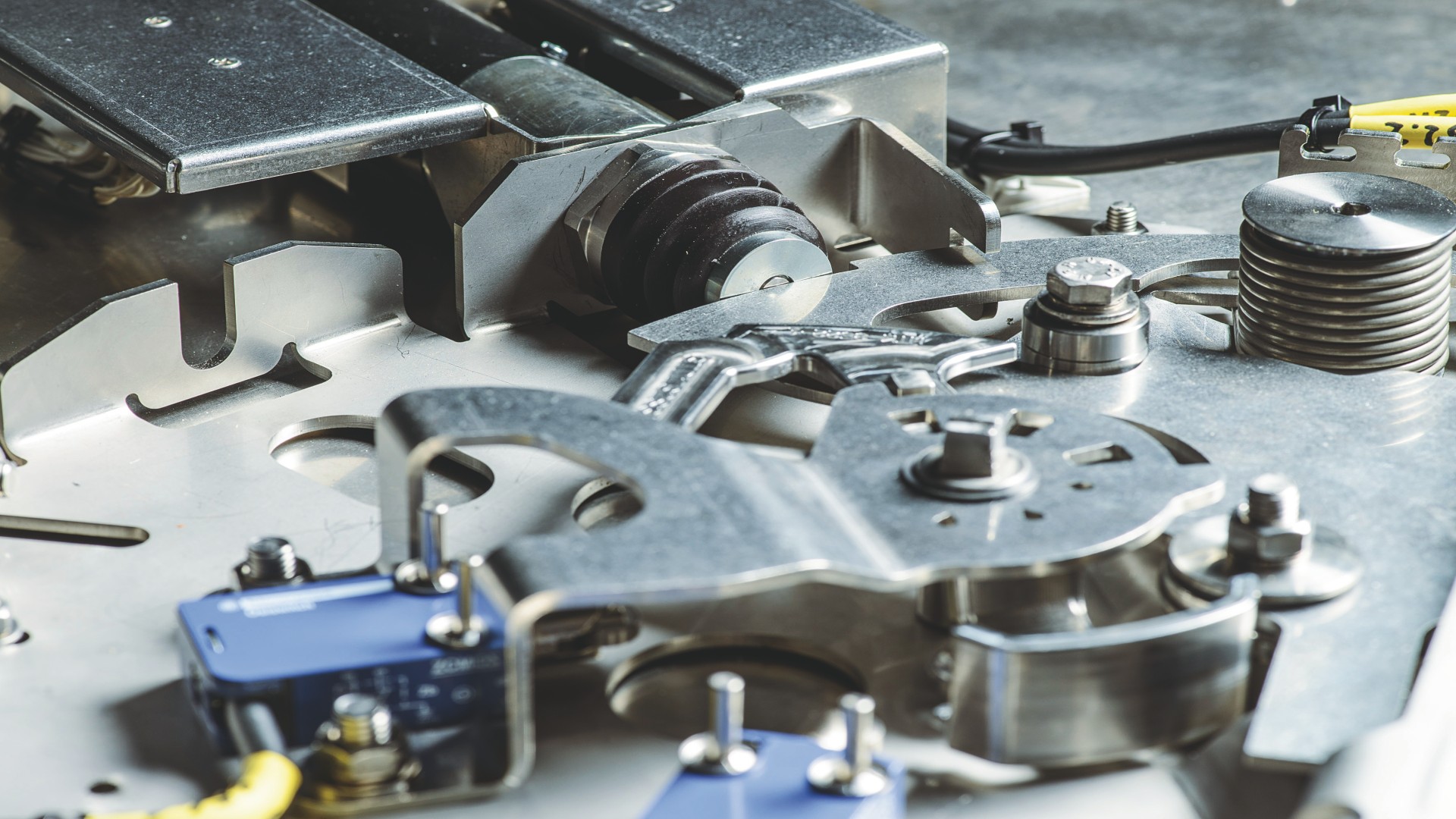

The integration of the weight detection in the guiding system and a design which is corrosion-free and insensitive to dirt ensure a reliable functioning of the system. The statically determined 3-point guide of the sliding step is torsion-tolerant and prevents jamming.

• 50 mm installation height only
• Jamming-free 3-point guiding system
• Tolerant to torsion of the vehicle
• Maintenance- and adjustment-free locking module
• Rugged design, not affected by dirt, corrosion as well as ice and snow
